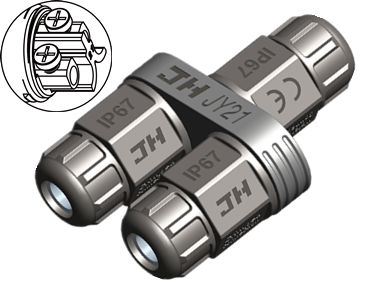

JH-M21 Type Y connector with Screw crimping

    Brand: JH

    Model: JH-21 series

    Category: Type Y waterproof connector

    Connection: screw crimping

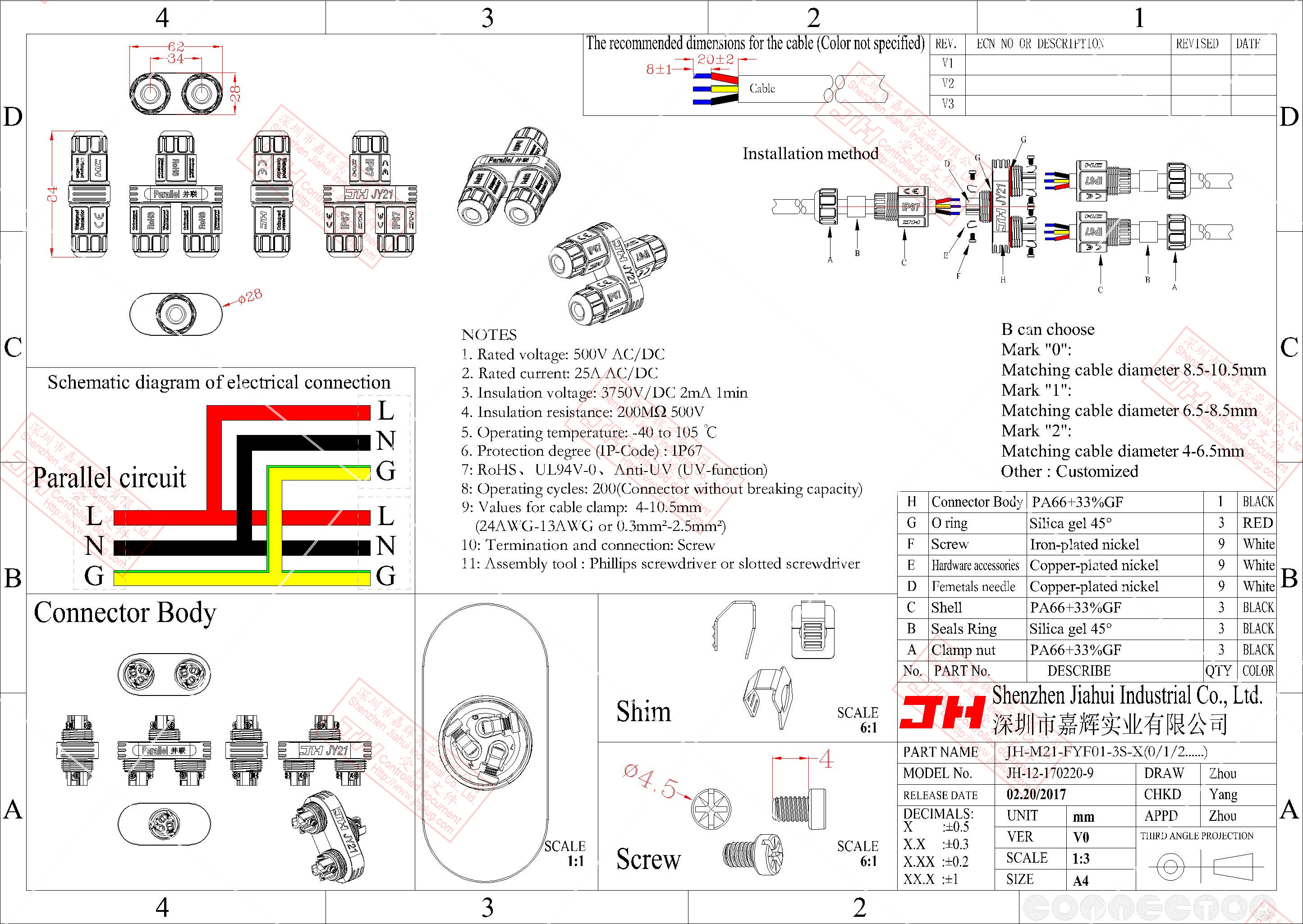

    Drawing number :

    JH-M21-FYF01-2S-X

    JH-M21-FYF02-2S-X

    JH-M21-FYF01-3S-X

    JH-M21-FYF02-3S-X


  • Overview
  • Parameter
  • Download

      1、M3 screw pressure line structure,Meet the site construction needs.
      2、Brass Nickel Plating Processing technology , high strength corrosion resistance and conductivity,effectively respond to changes in temperaturerise caused by electric current。

      3、Nylon material,Stable electrical performance,high strength of the anti-pressure , high temperature resistance,anti-explosion,corrosion resistance.

      4、The unique tablet design,wire does not need tin,crimping more reliable , will not damage the copper wire structure.

      5、IP-Code:IP67 / IP68

      (Can be in parallel or in series)

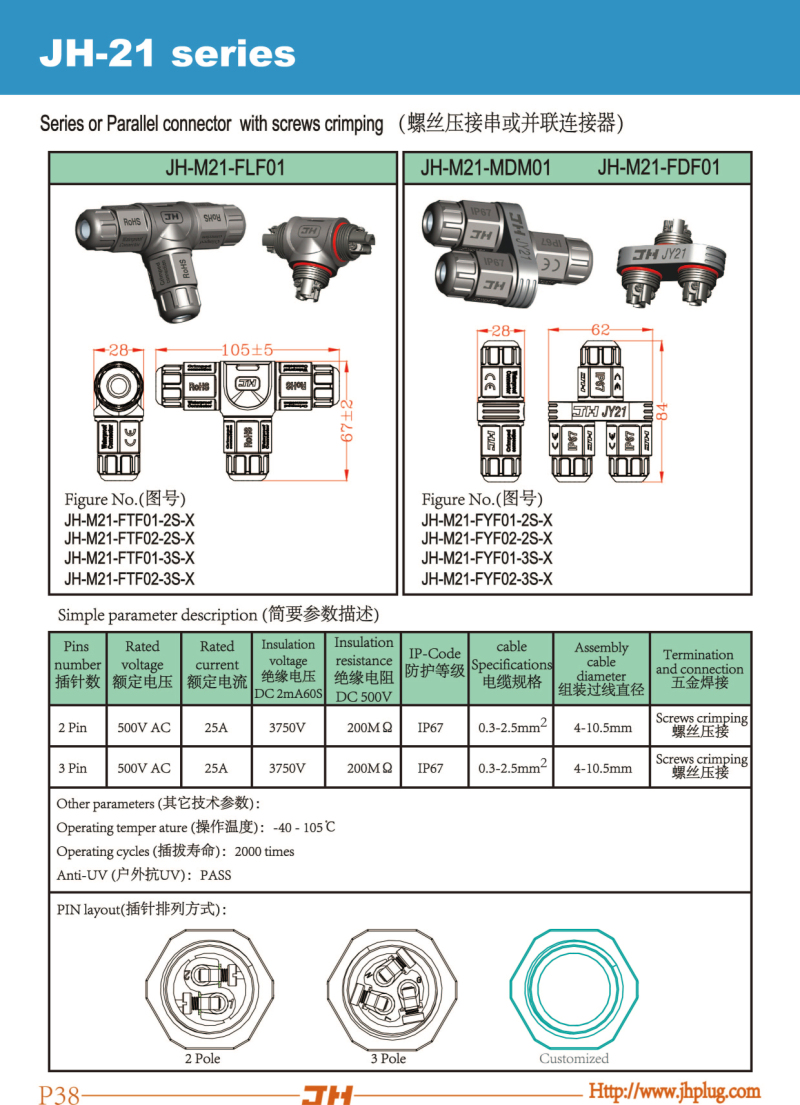

    P38-JH-21 series-Series or Parallel connector  with screws crimping.jpg
