Brand: JH
Model: JH-21 series
Category: Type T waterproof connector
Connection: screw crimping
Drawing number :

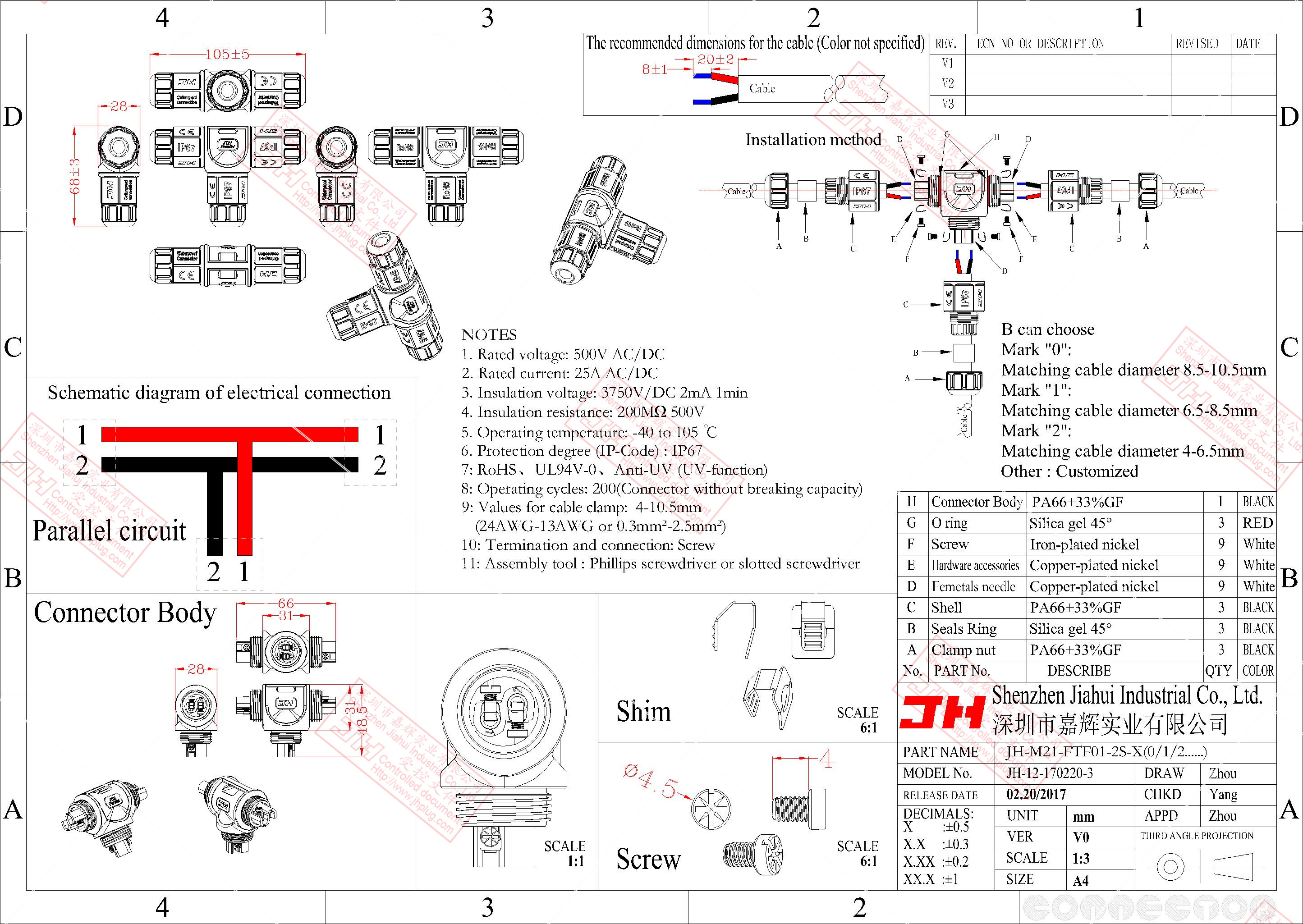

JH-M21-FTF01-2S-X

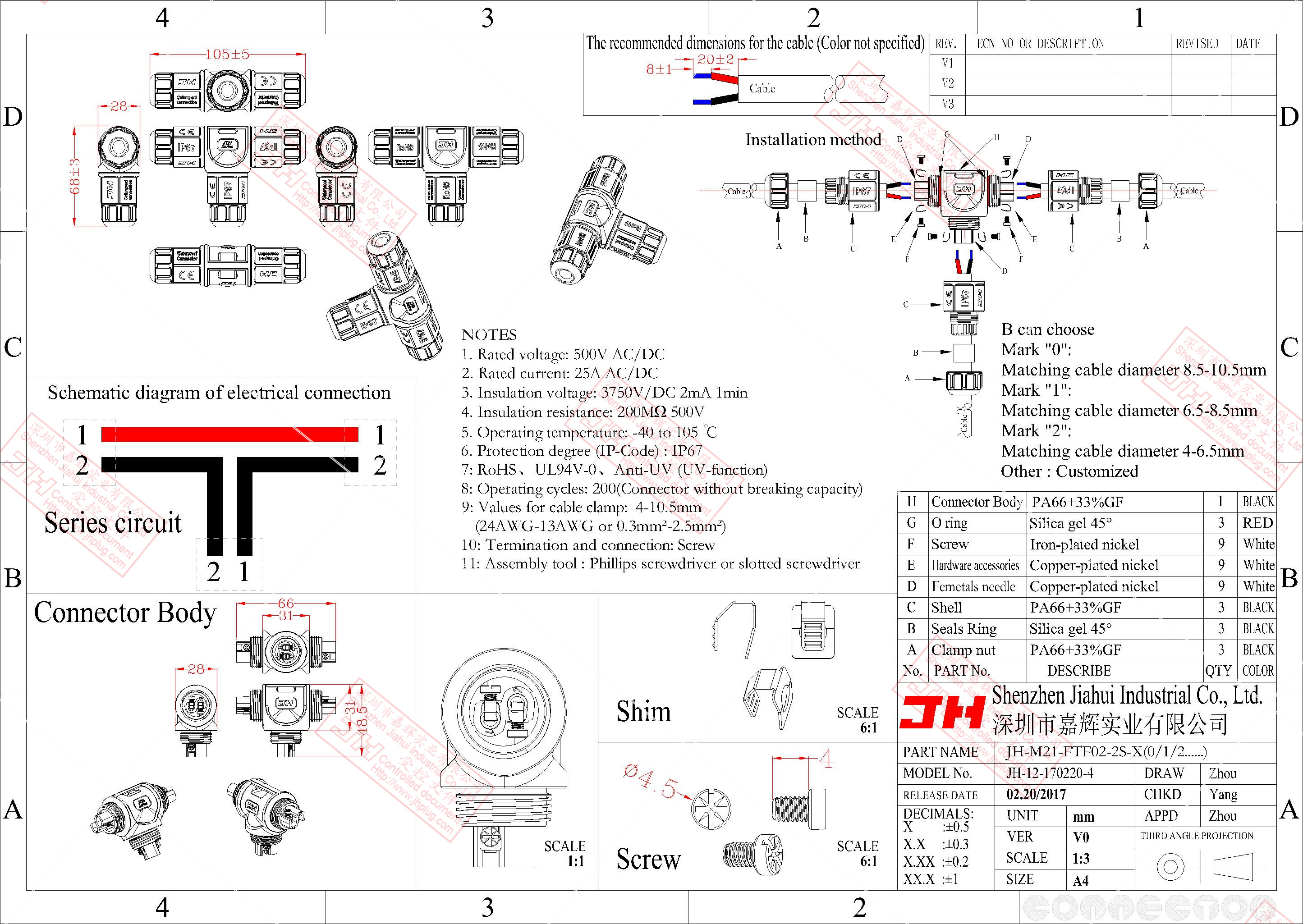

JH-M21-FTF02-2S-X

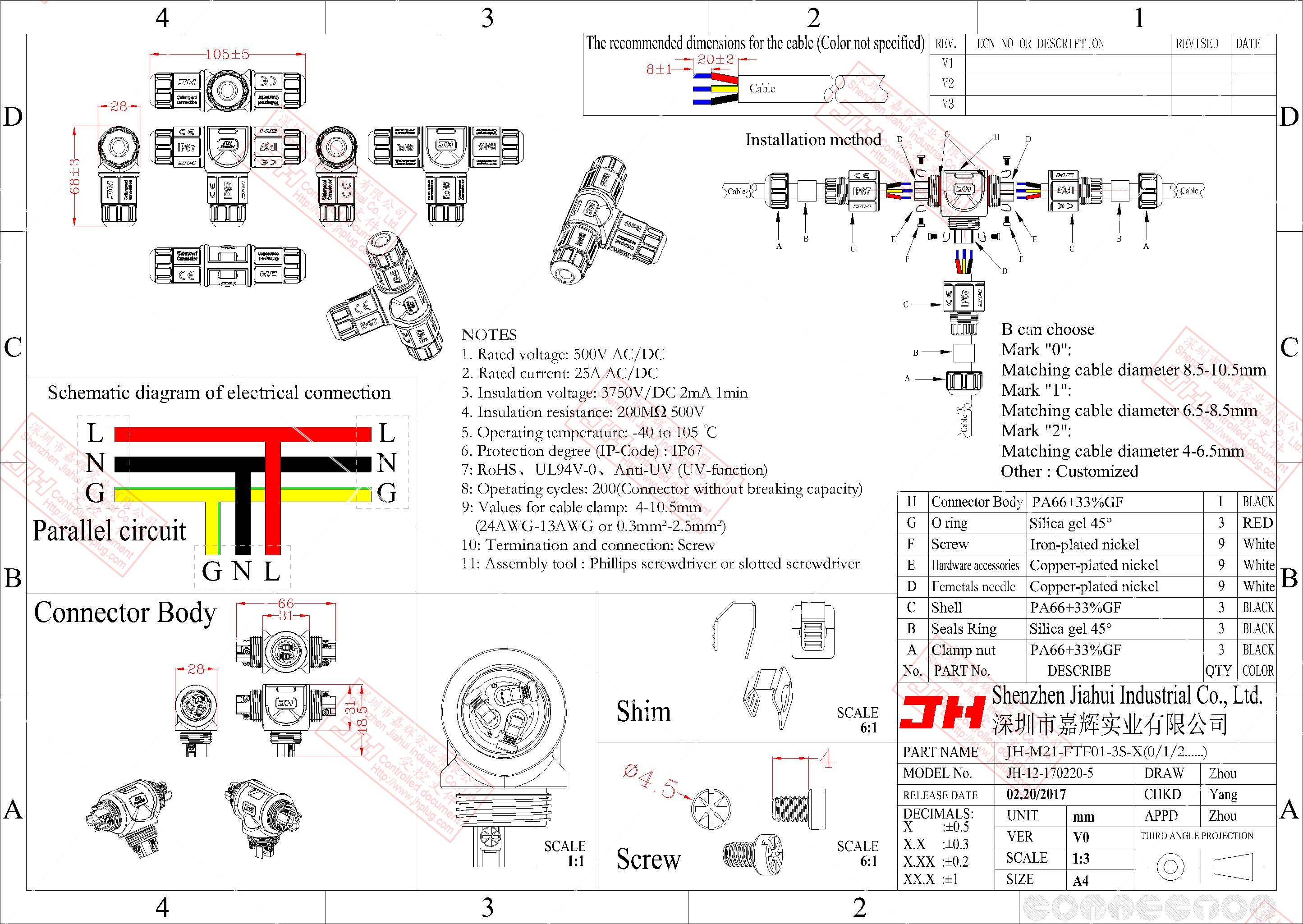

JH-M21-FTF01-3S-X

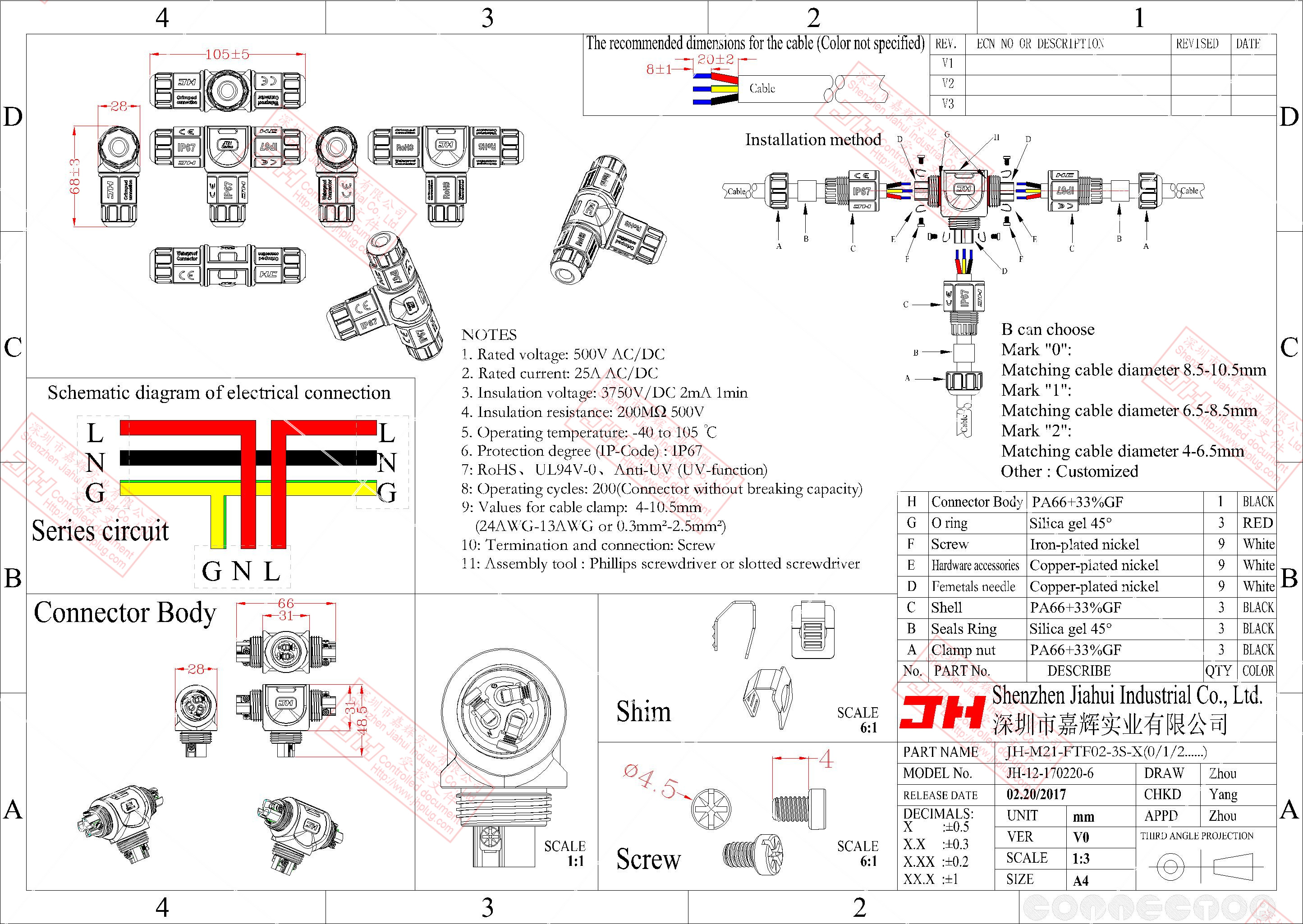

JH-M21-FTF02-3S-X
1、M3 screw pressure line structure,Meet the site construction needs.
2、Brass Nickel Plating Processing technology , high strength corrosion resistance and conductivity，effectively respond to changes in temperaturerise caused by electric current。
3、Nylon material,Stable electrical performance,high strength of the anti-pressure , high temperature resistance,anti-explosion,corrosion resistance.
4、The unique tablet design,wire does not need tin,crimping more reliable , will not damage the copper wire structure.
5、IP-Code：IP67 / IP68
(Can be in parallel or in series)
