Brand : JH
Model : JH-16 series
Category : Flange socket with male needle
Connection : Welding / PCB / Screw crimping
Needle category : Male PIN

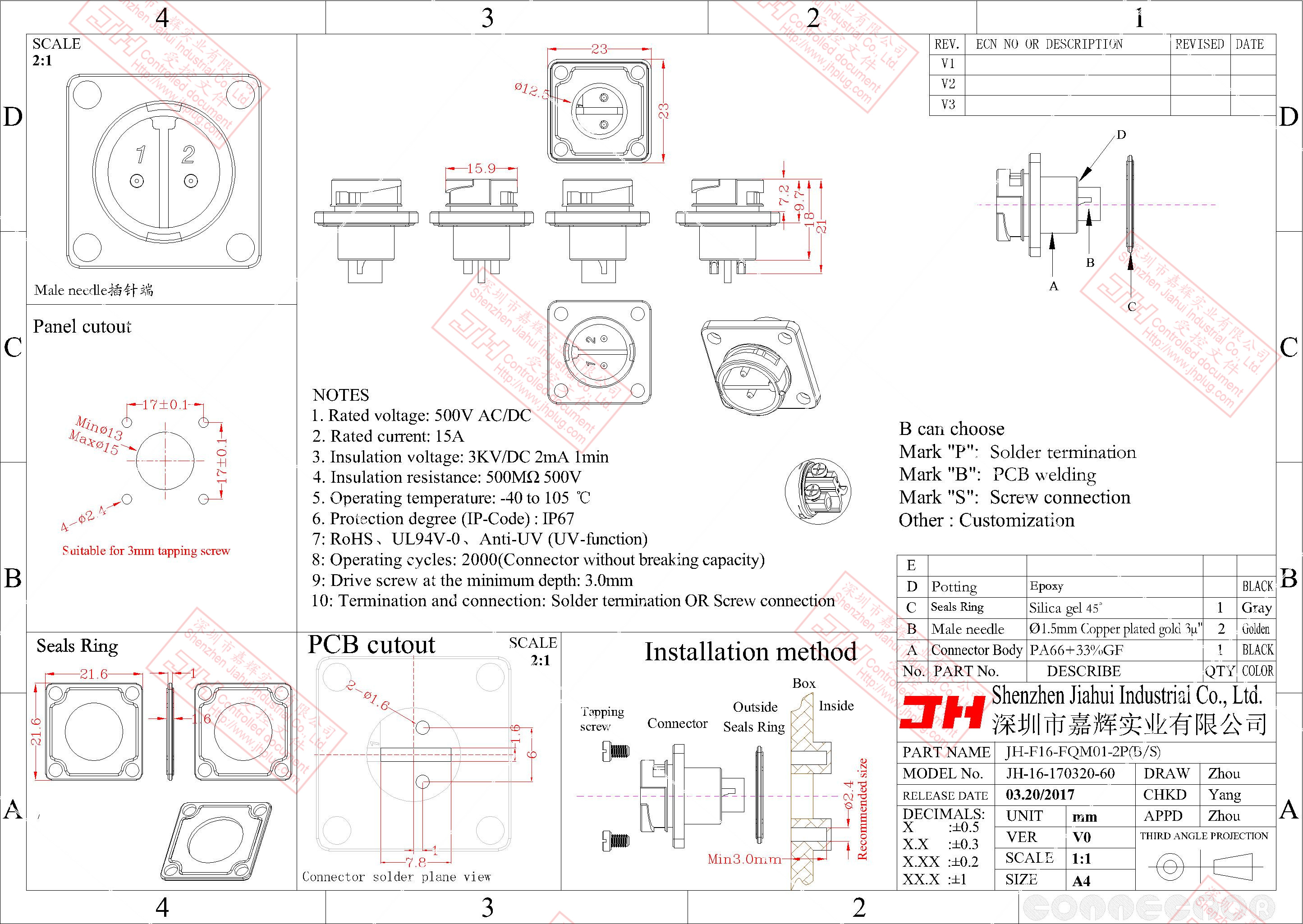

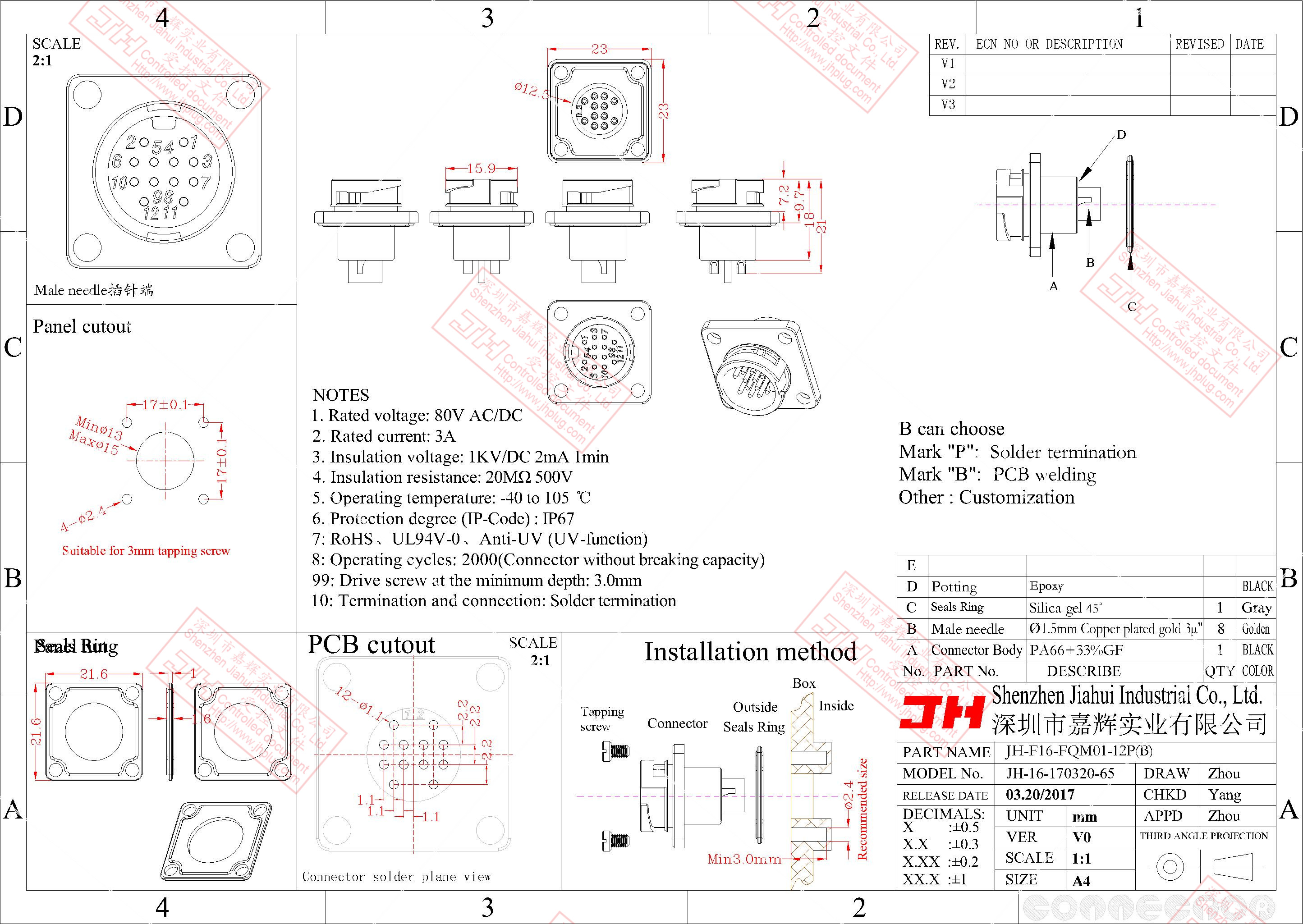

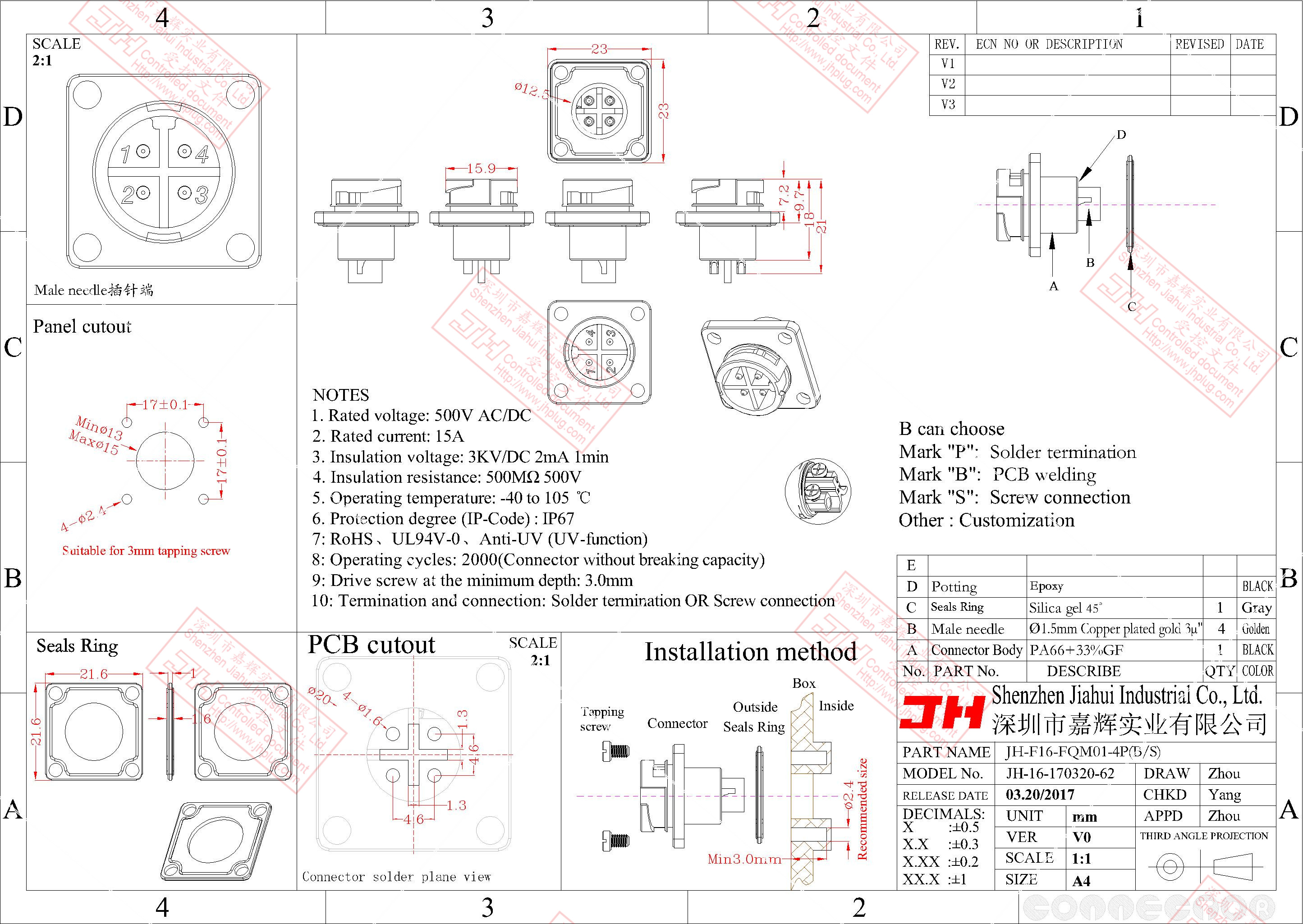

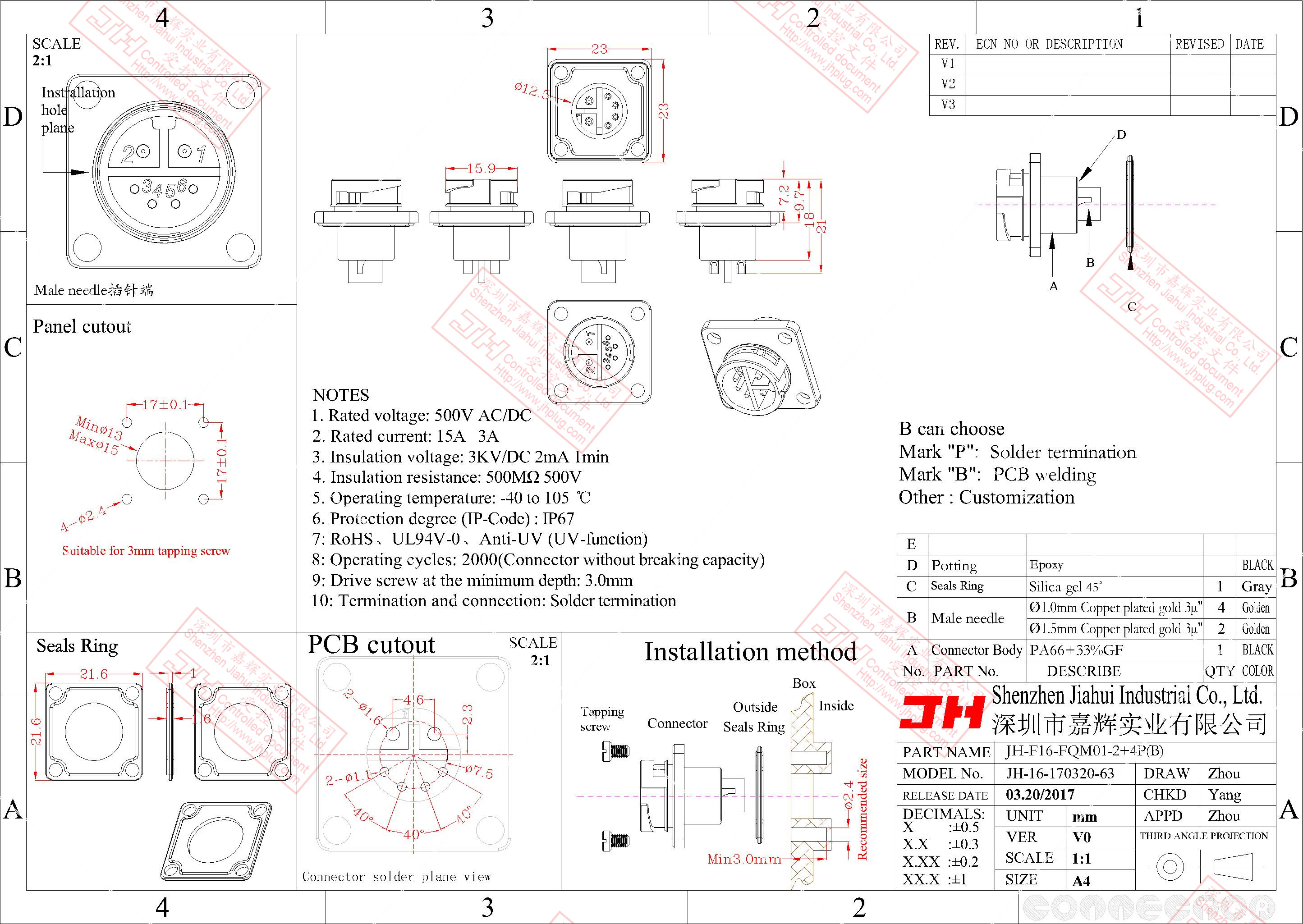

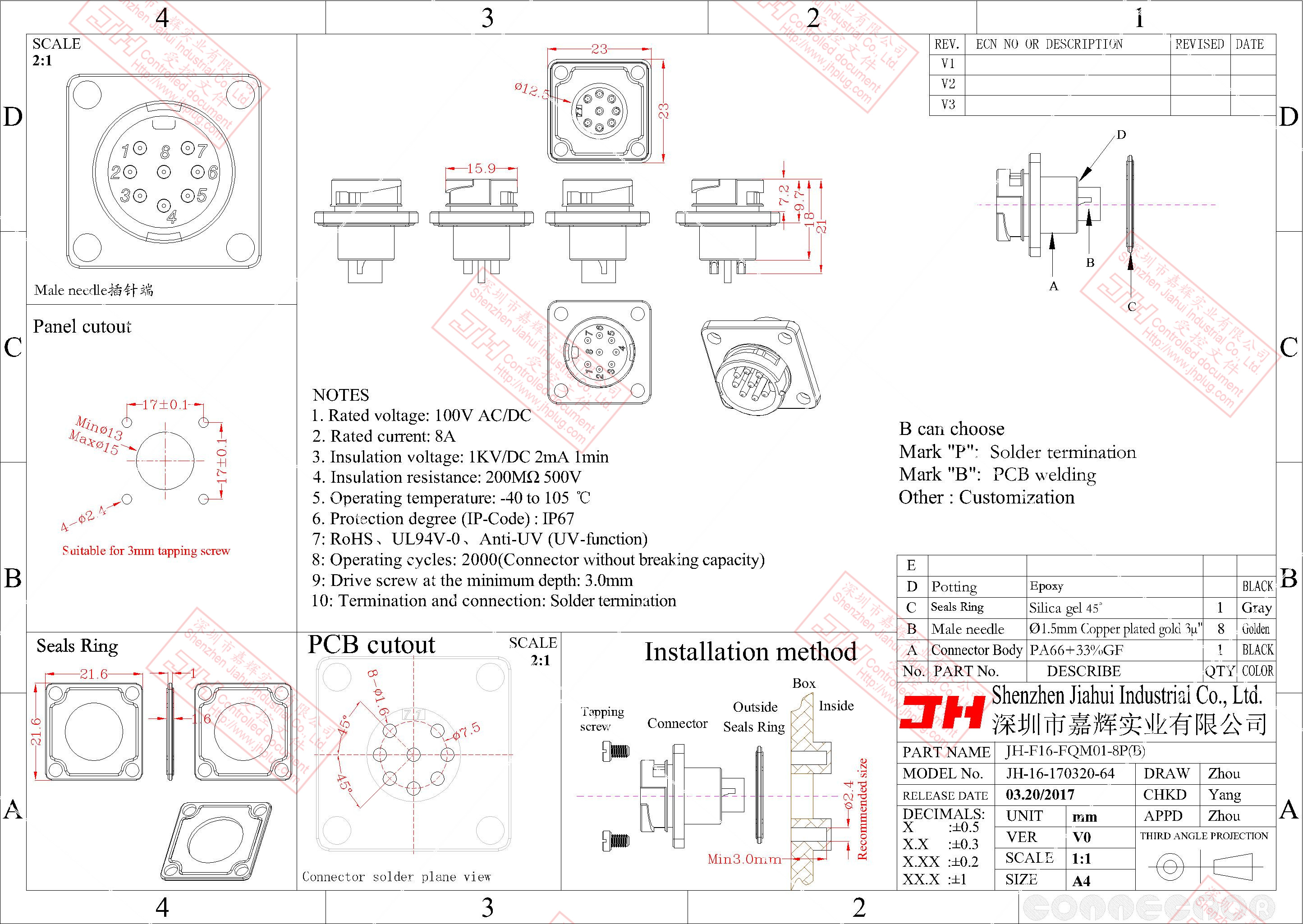

Drawing number :
JH-F16-FQM01-2P(B、S)
JH-F16-FQM01-3P(B、S)
JH-F16-FQM01-4P(B、S)
JH-F16-FQM01-2+4P(B、S)
JH-F16-FQM01-8P(B、S)
JH-F16-FQM01-12P(B、S)
1、Multi-style inner core design（2、3、4、2+4、8 、12Pole），meet the diverse needs of the industry,Signal and power simultaneously compatible with both
2、Gold-plated contacts,high strength corrosion resistance and conductivity.effectively respond to changes in temperature rise caused by electric current
3、Nylon material,stable electrical performance.high strength of the anti-pressure
4、Flange socket with four hole, PA3 screw.
5、IP-Code：IP67 / IP68
