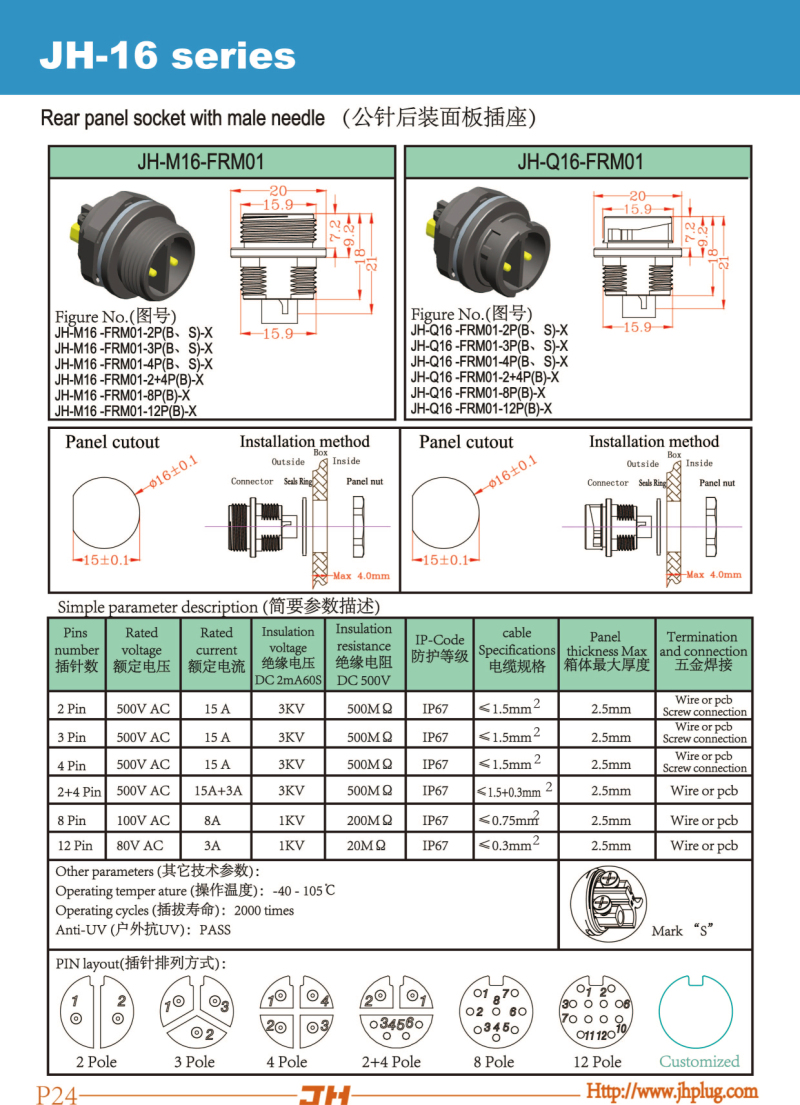

Brand : JH
Model : JH-16 series
Category : Rear panel socket with male needle
Connection : Welding / PCB / Screw crimping
Needle category : Male PIN

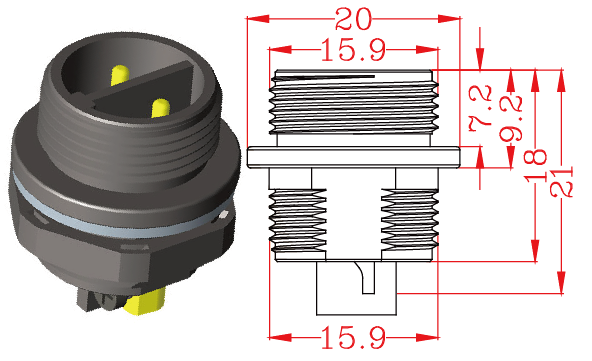

Drawing number :

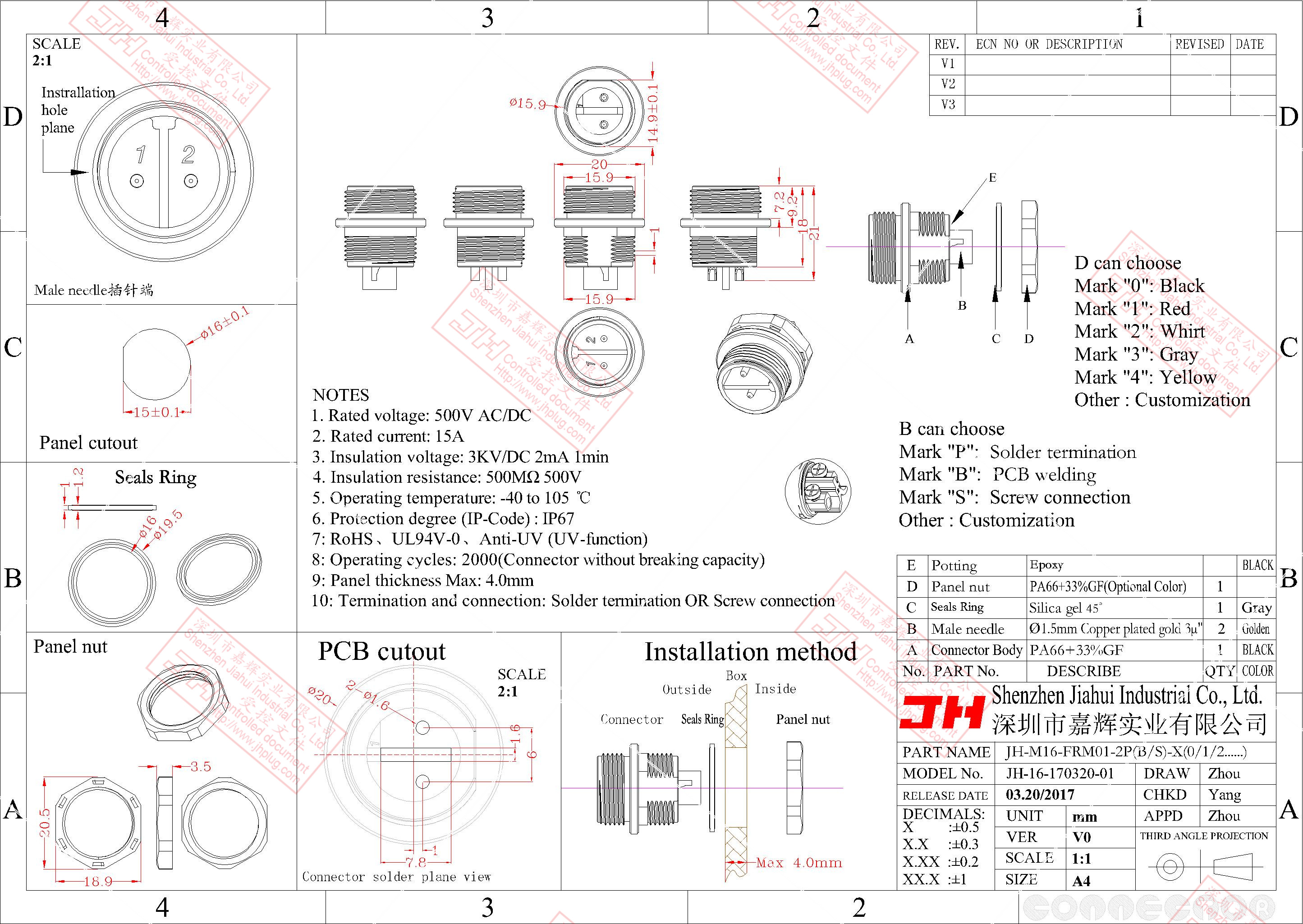

JH-M16-FRM01-2P(B、S)-X
JH-M16-FRM01-3P(B、S)-X
JH-M16-FRM01-4P(B、S)-X

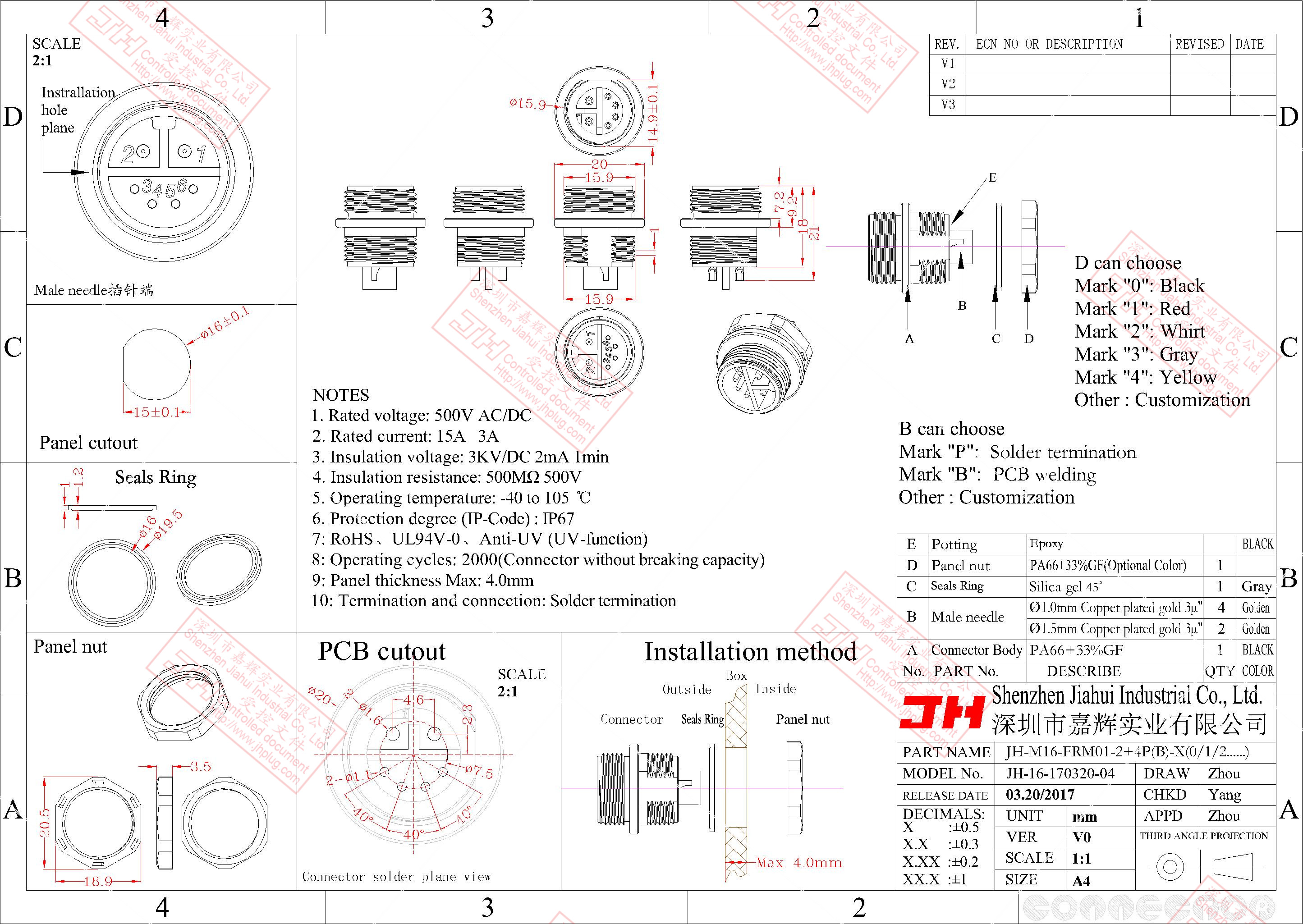

JH-M16-FRM01-2+4P(B、S)-X

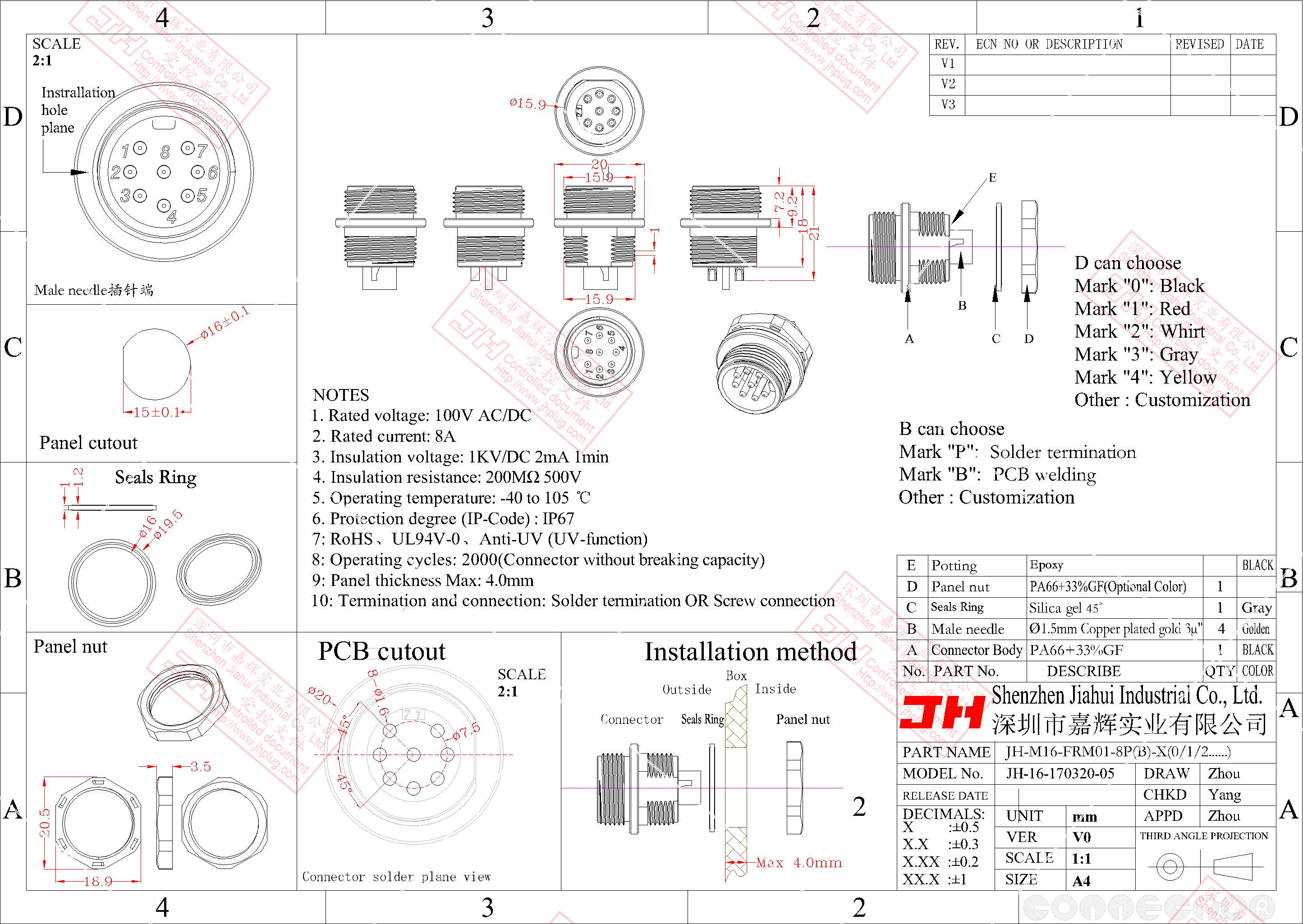

JH-M16-FRM01-8P(B、S)-X
JH-M16-FRM01-12P(B、S)-X
1、Multi-style inner core design（2、3、4、2+4、8 、12Pole），meet the diverse needs of the industry,Signal and power simultaneously compatible with both
2、Gold-plated contacts,high strength corrosion resistance and conductivity.effectively respond to changes in temperature rise caused by electric current
3、Nylon material,stable electrical performance.high strength of the anti-pressure
4、Marking "S" is screw crimping, suitable for on-site installation .

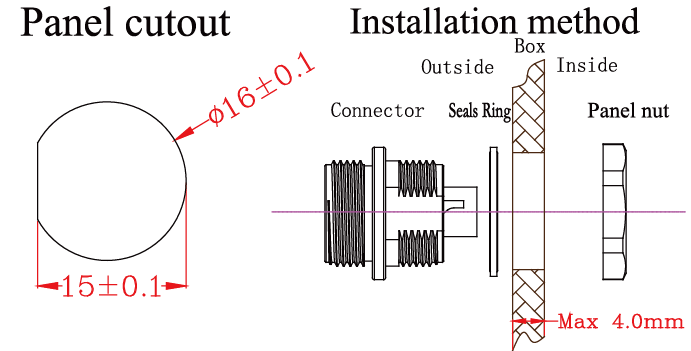

5、Standard M16 ×1.0 international thread design . Panel cutout 16mm, Panel thickness max.: 4mm.
6、IP-Code：IP67 / IP68
