Brand : JH
Model : JH-16 series
Category : Fornt panel socket with female needle
Connection : Welding / PCB / Screw crimping
Needle category : Female PIN

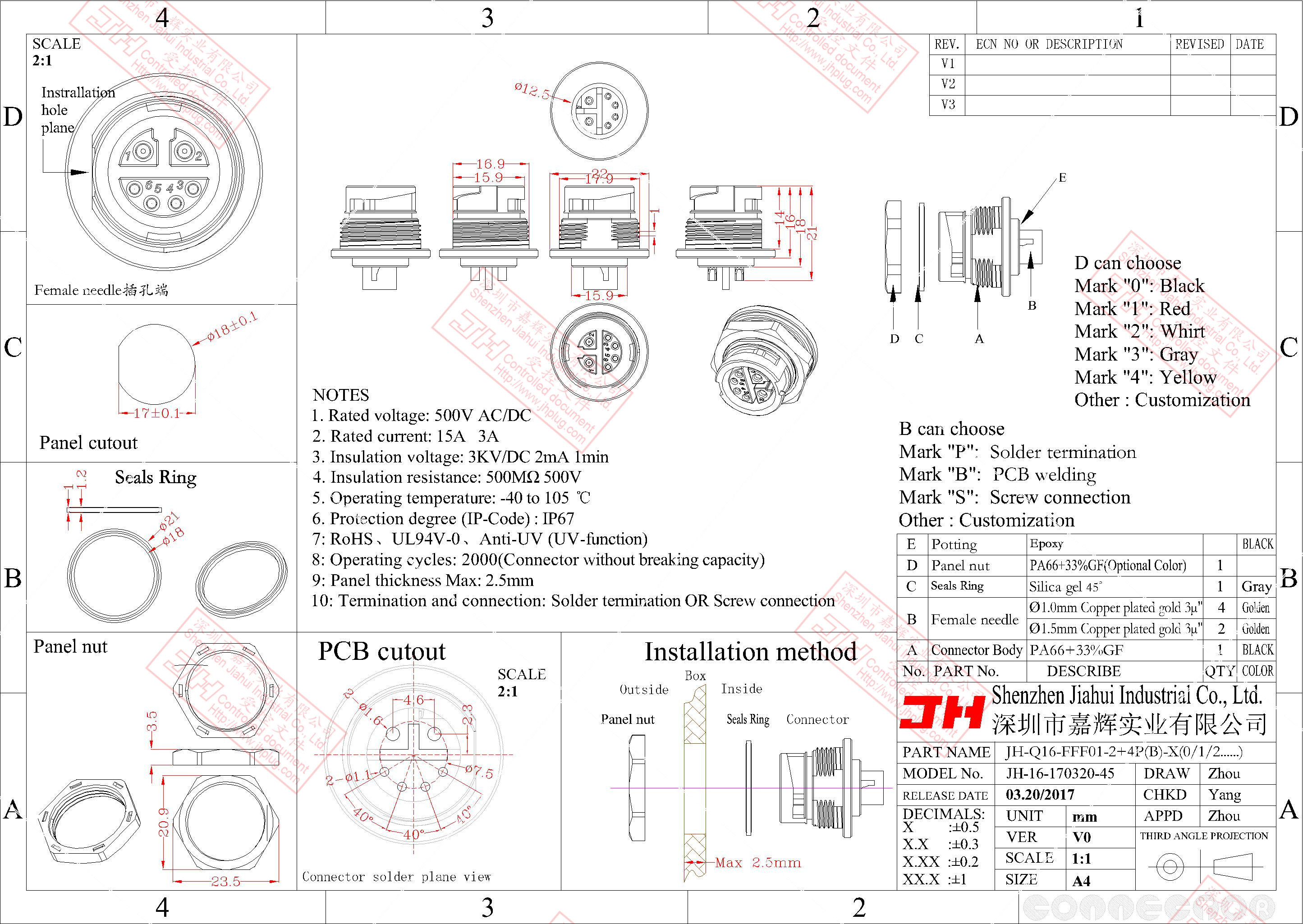

Drawing number :
JH-Q16-FFF01-2P(B、S)-X
JH-Q16-FFF01-3P(B、S)-X
JH-Q16-FFF01-4P(B、S)-X
JH-Q16-FFF01-2+4P(B、S)-X
JH-Q16-FFF01-8P(B、S)-X
JH-Q16-FFF01-12P(B、S)-X
1、Multi-style inner core design（2、3、4、2+4、8 、12Pole），meet the diverse needs of the industry,Signal and power simultaneously compatible with both
2、Gold-plated contacts,high strength corrosion resistance and conductivity.effectively respond to changes in temperature rise caused by electric current
3、Nylon material,stable electrical performance.high strength of the anti-pressure
4、Marking "S" is screw crimping, suitable for on-site installation .
5、Quick lock connect design . Panel cutout 18mm, Panel thickness max.: 2.5mm.
6、IP-Code：IP67 / IP68
