JH-M16 Fornt panel socket with male needle (Thread)

Brand : JH

Model : JH-16 series

Category : Fornt panel socket with male needle

Connection :  Welding / PCB /  Screw crimping

Needle category : Male PIN

Drawing number :

JH-M16-FFM01-2P(B、S)-X

JH-M16-FFM01-3P(B、S)-X

JH-M16-FFM01-4P(B、S)-X

JH-M16-FFM01-2+4P(B、S)-X

JH-M16-FFM01-8P(B、S)-X

JH-M16-FFM01-12P(B、S)-X

  • Overview
  • Parameter
  • Download

          1、Multi-style inner core design(2、3、4、2+4、8 、12Pole),meet the diverse needs of the industry,Signal and power simultaneously compatible with both

          2、Gold-plated contacts,high strength corrosion resistance and conductivity.effectively respond to changes in temperature rise caused by electric current

          3、Nylon material,stable electrical performance.high strength of the anti-pressure

        4、Marking "S" is screw crimping, suitable for on-site installation .

          5、Standard M16 ×1.0 international thread design . Panel cutout 16mm, Panel thickness max.: 2.5mm.

          6、IP-Code:IP67 / IP68

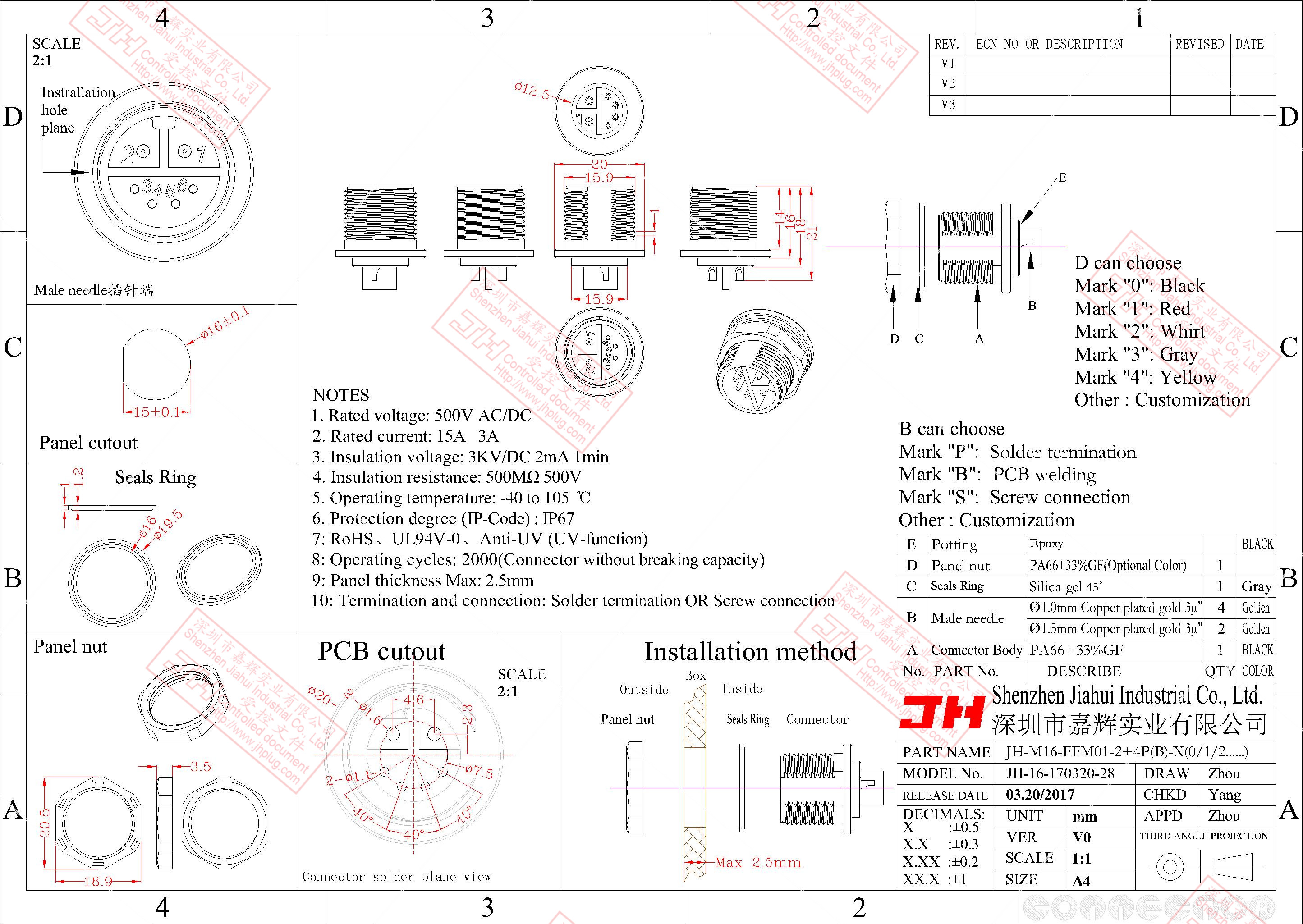

    P22-JH-16 series-Front panel socket with male needle.jpg
