Brand : JH
Model : JH-12 series

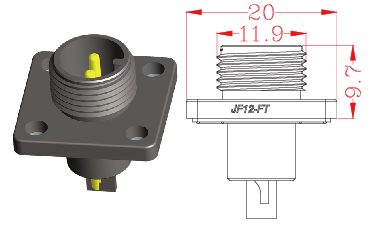

Category : Flange socket with male needle
Connection : Welding / PCB
Needle category : Male PIN

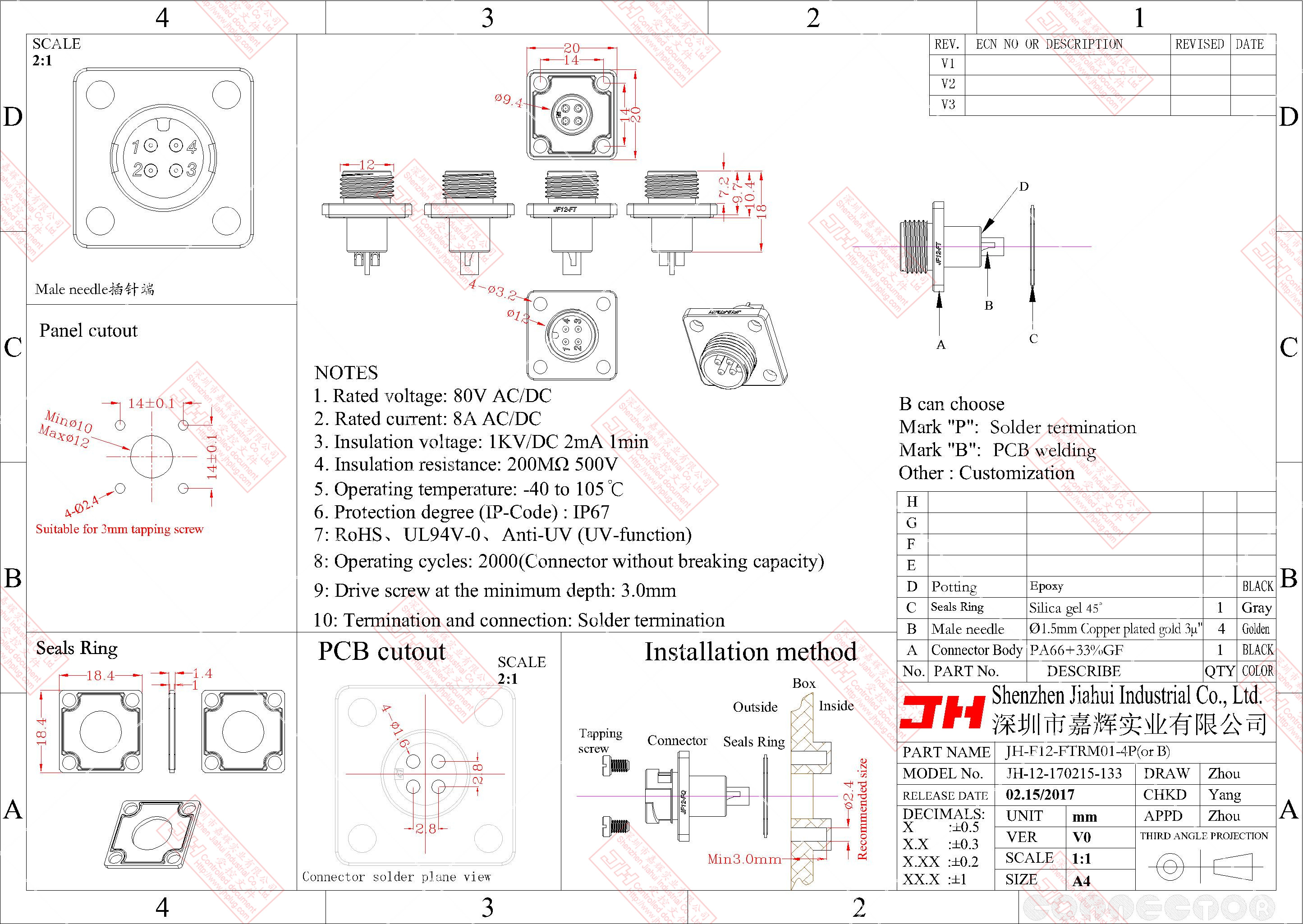

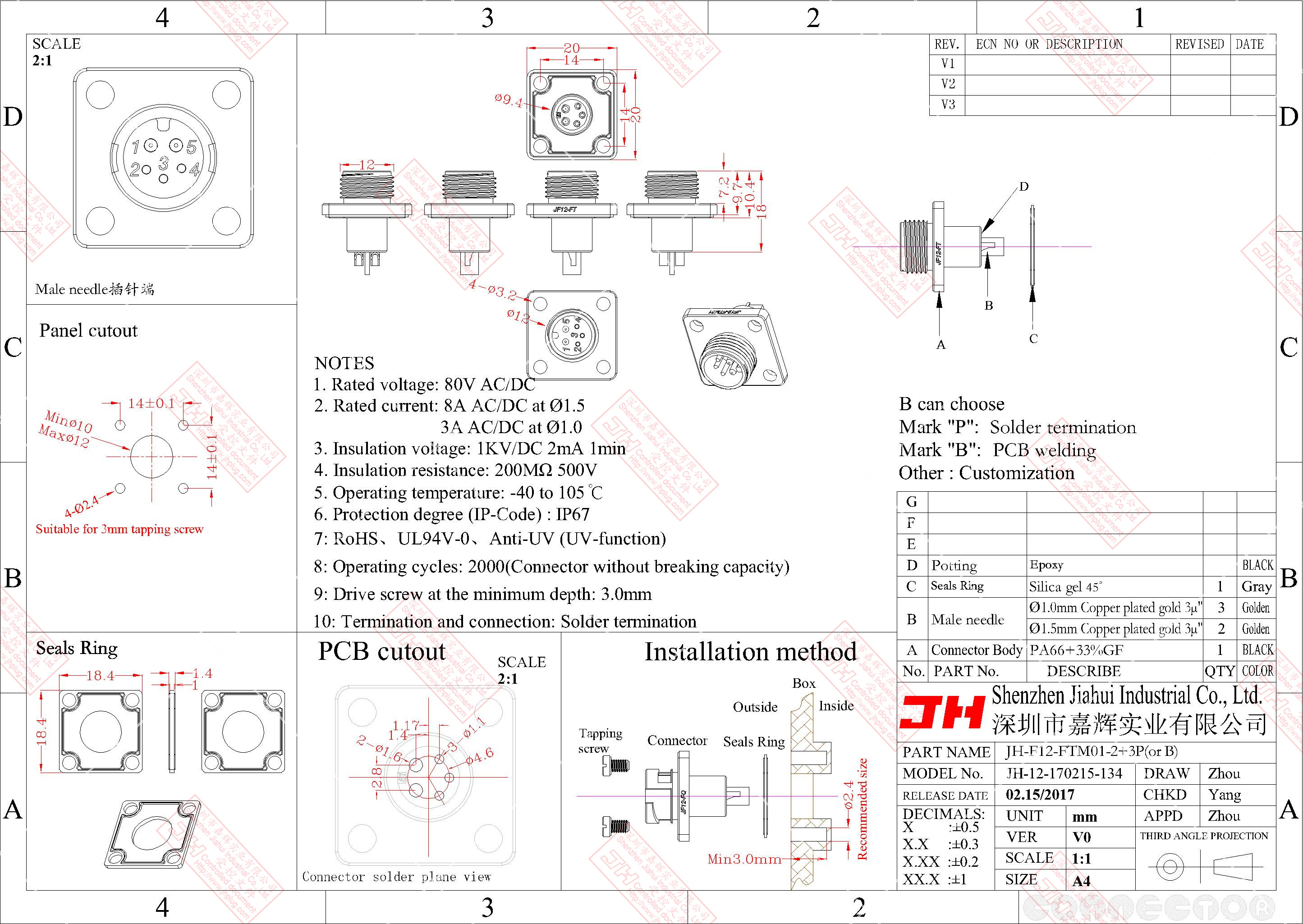

Drawing number :
JH-F12-FTM01-2P(B)-X
JH-F12-FTM01-3P(B)-X
JH-F12-FTM01-4P(B)-X
JH-F12-FTM01-2+3P(B)-X
JH-F12-FTM01-8P(B)-X
1、Multi-style inner core design（2、3、4、2+3、8 Pole），meet the diverse needs of the industry,Signal and power simultaneously compatible with both
2、Gold-plated contacts,high strength corrosion resistance and conductivity.effectively respond to changes in temperature rise caused by electric current
3、Nylon material,stable electrical performance.high strength of the anti-pressure

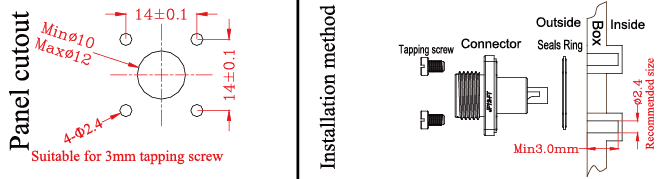

4、Flange socket with four hole, PA3 screw.
5、IP-Code：IP67 / IP68
